Double 240L Lockable Bin Enclosure

Powder-coated galvanised steel, gas-strut lids, independently lockable doors. Flat-packed.

The enclosure with both doors closed, showing the slatted grey powder-coated front, two key locks side by side, and the open steel frame at the base.

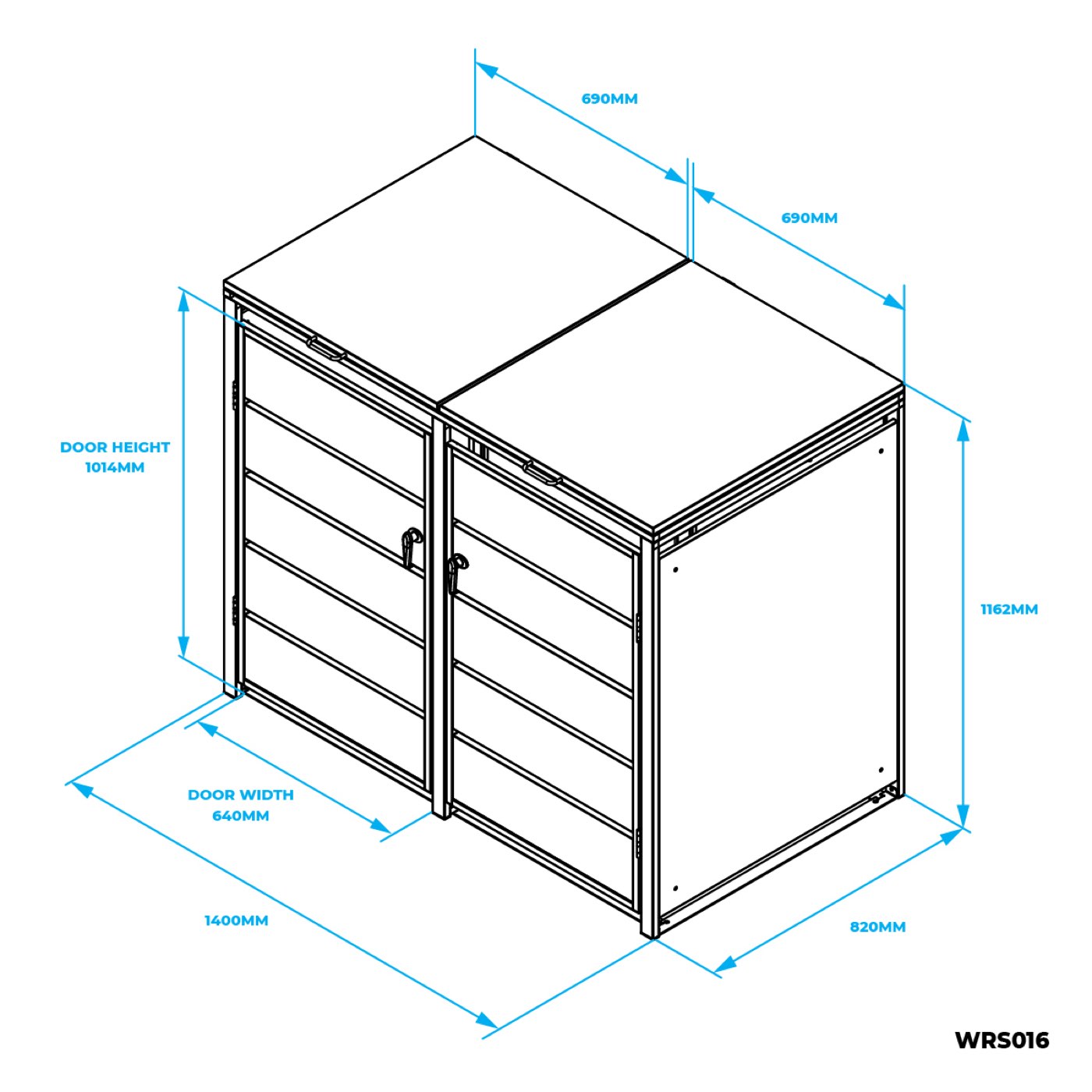

Dimensioned isometric drawing: 1400 mm wide, 820 mm deep, 1162 mm high overall, with two 690 mm lid sections, door width 640 mm and door height 1014 mm.

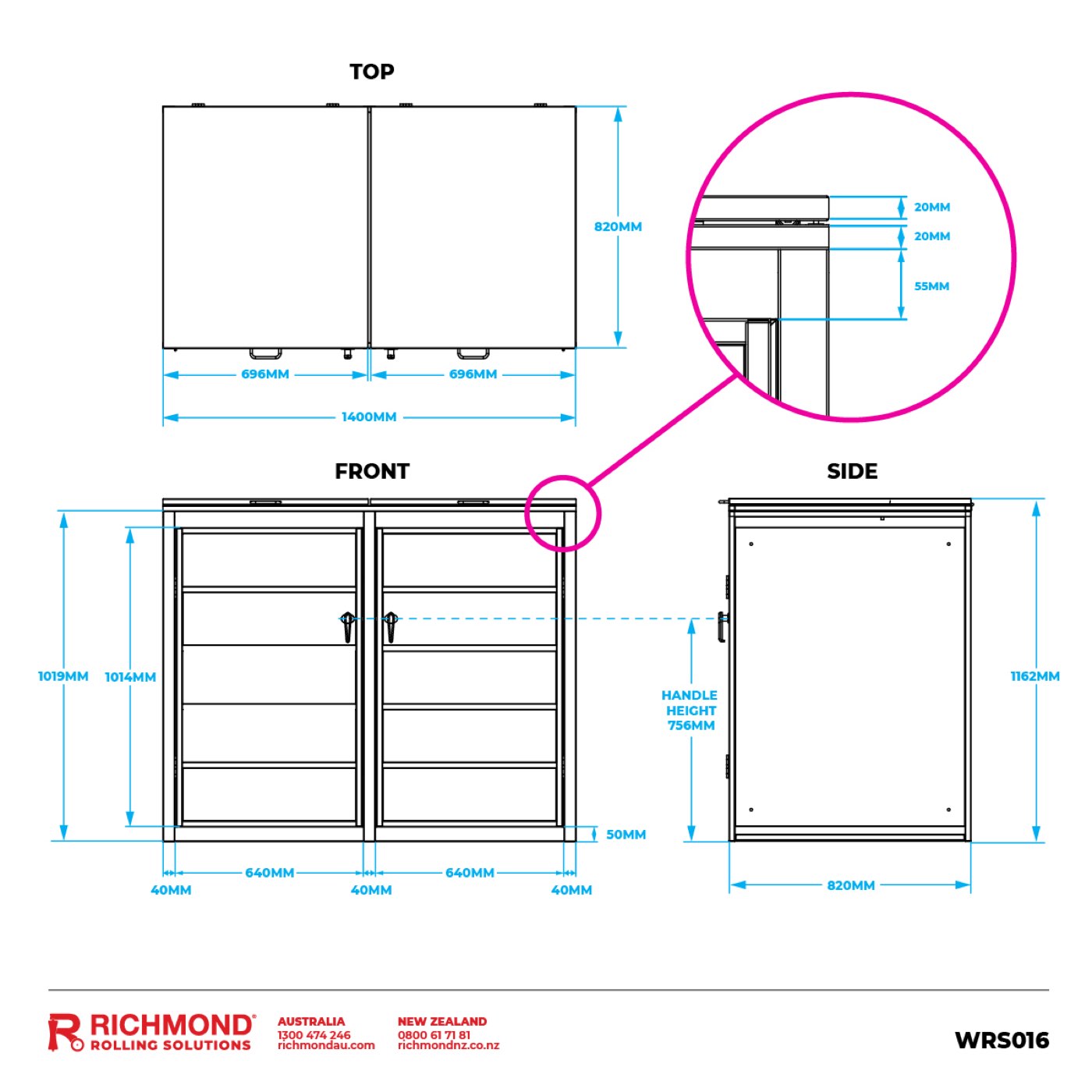

Engineering drawing with top, front and side elevations: 1400 x 820 mm plan with two 696 mm lids, doors 640 mm wide with 40 mm gaps and 50 mm clearance below, 1162 mm high, handle height 756 mm.
One lid raised on its gas strut with the front doors still shut.
Both front doors swung open showing the two internal bays.

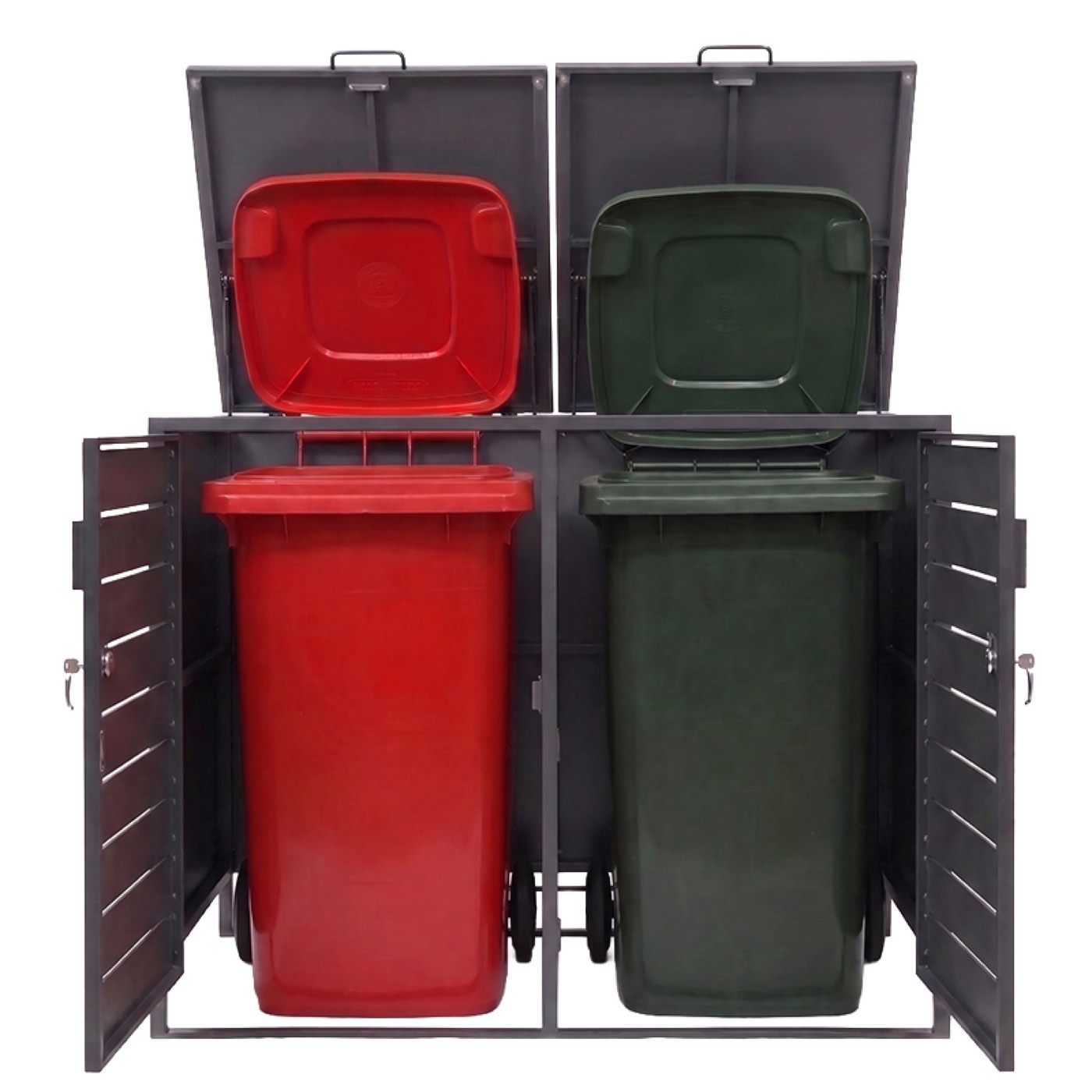

Lid and front doors open together, showing full access to a bay.

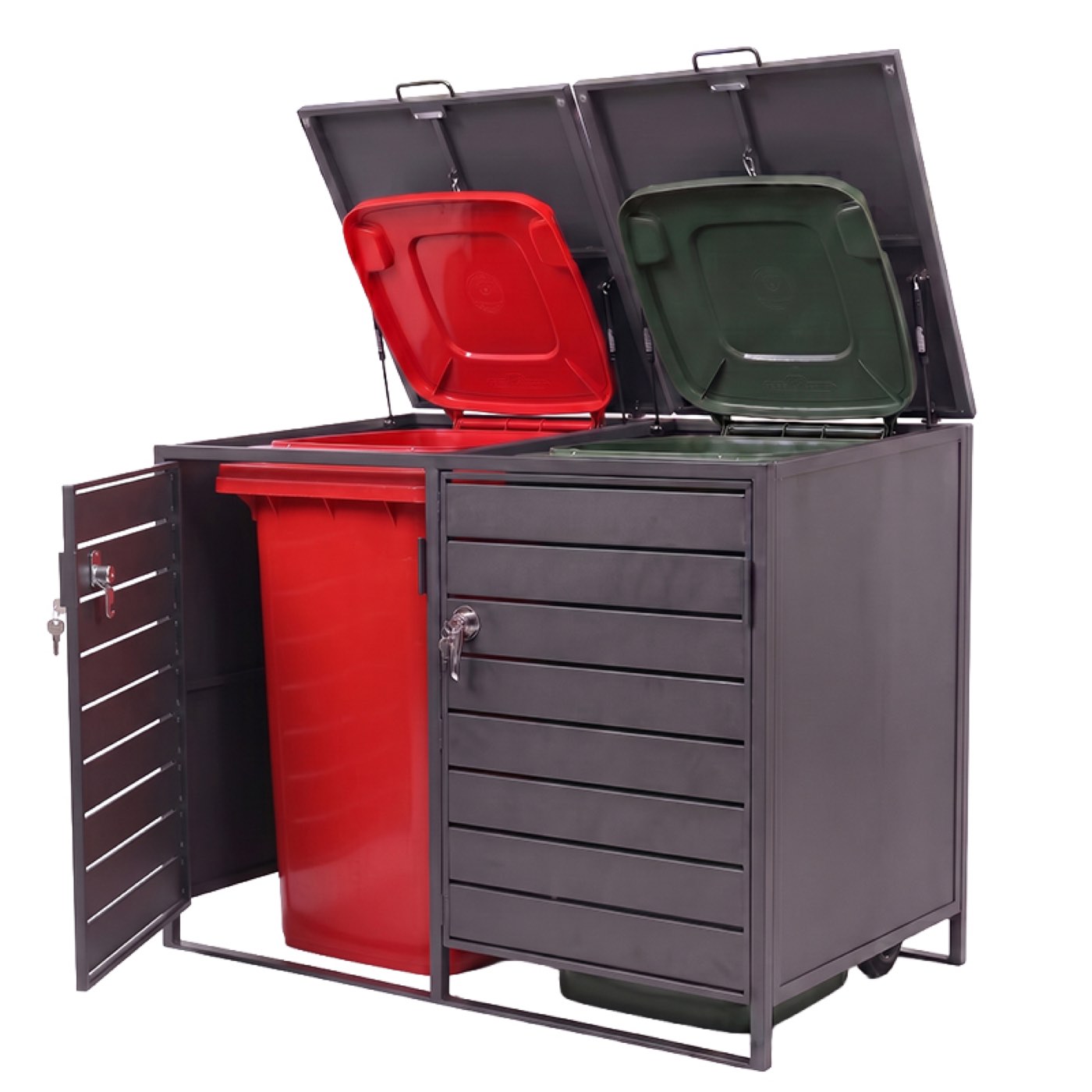

One compartment open at both the door and the lid.

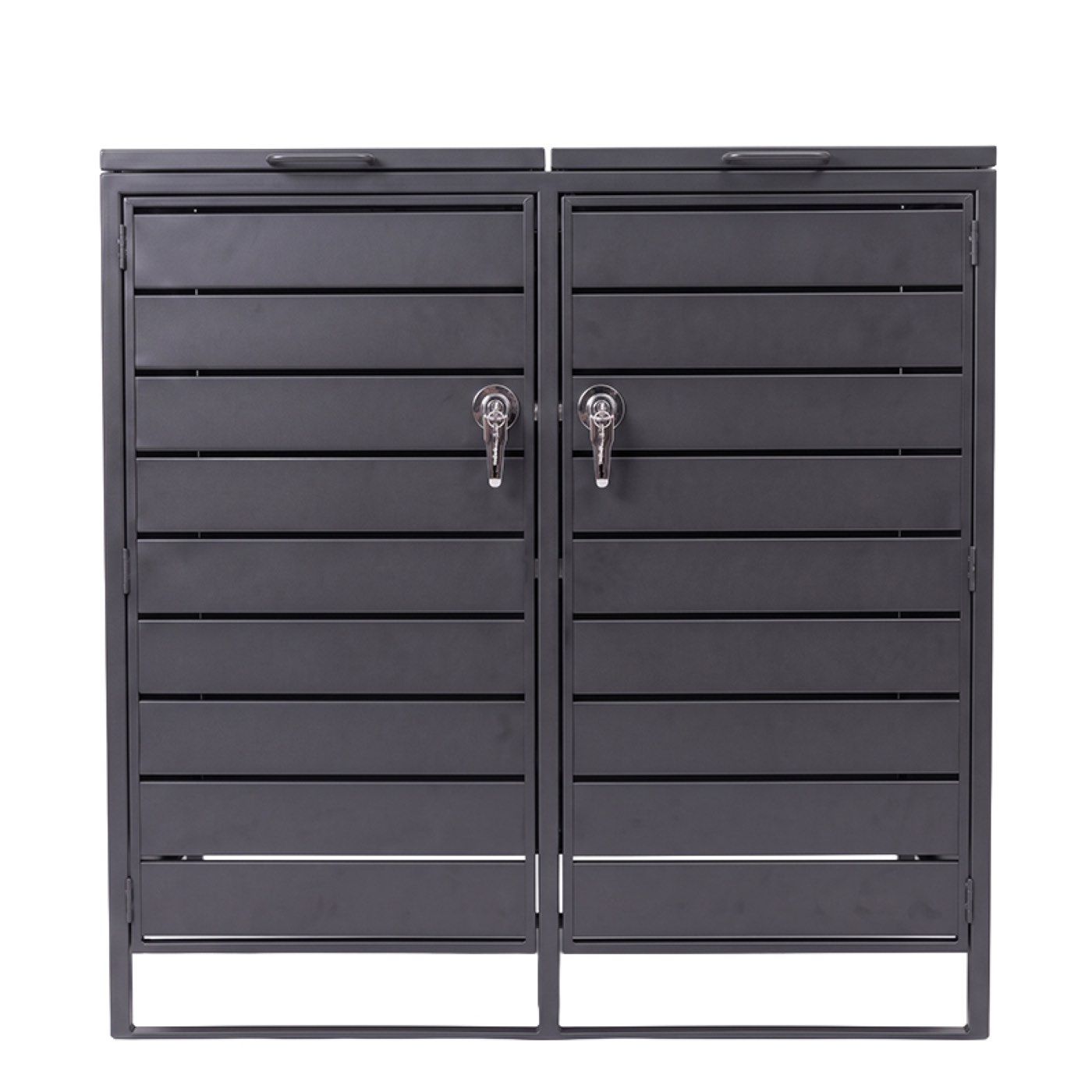

Straight-on view of the closed front.

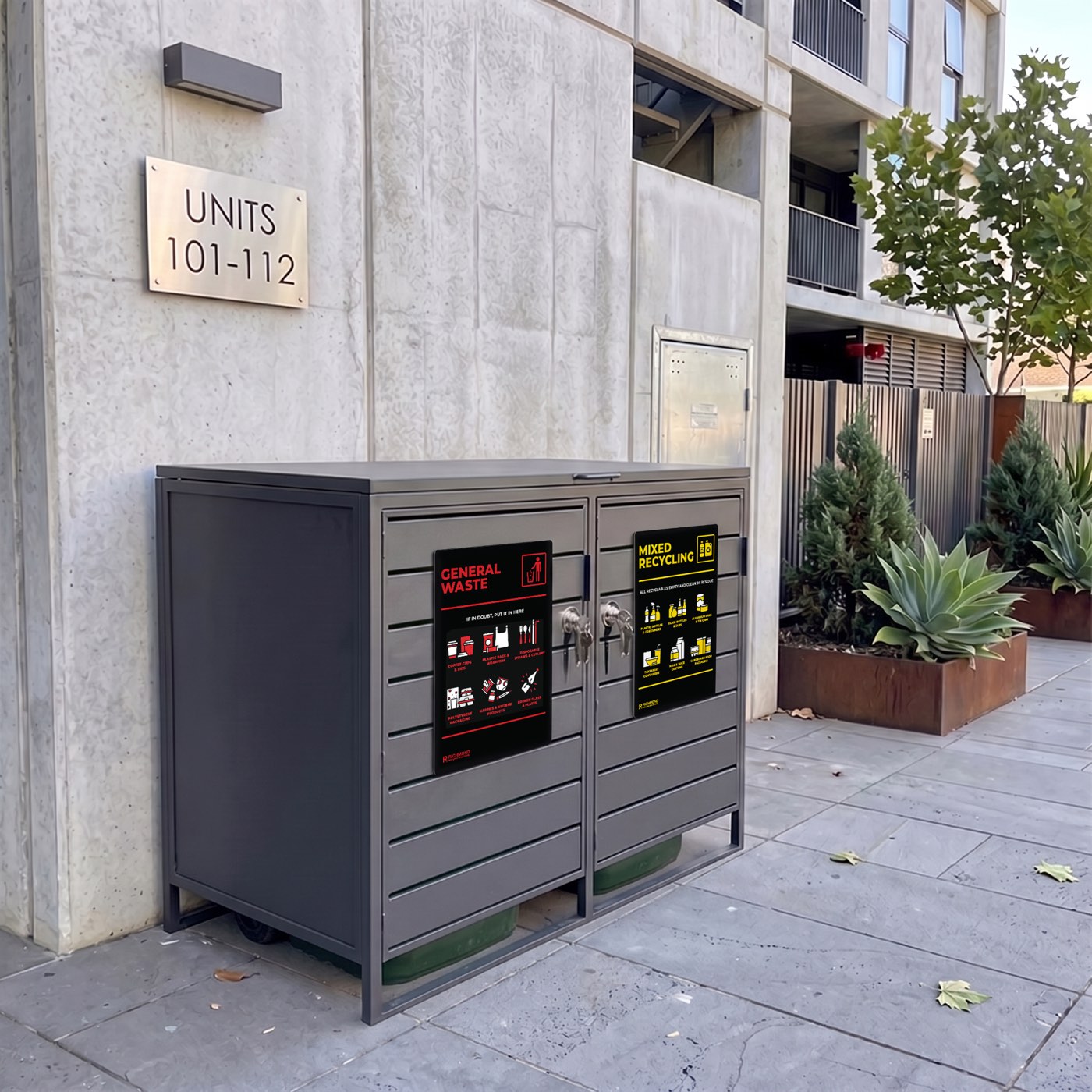

The enclosure installed on a footpath outside an apartment block, with General Waste and Mixed Recycling signage on the doors and green bins visible beneath.

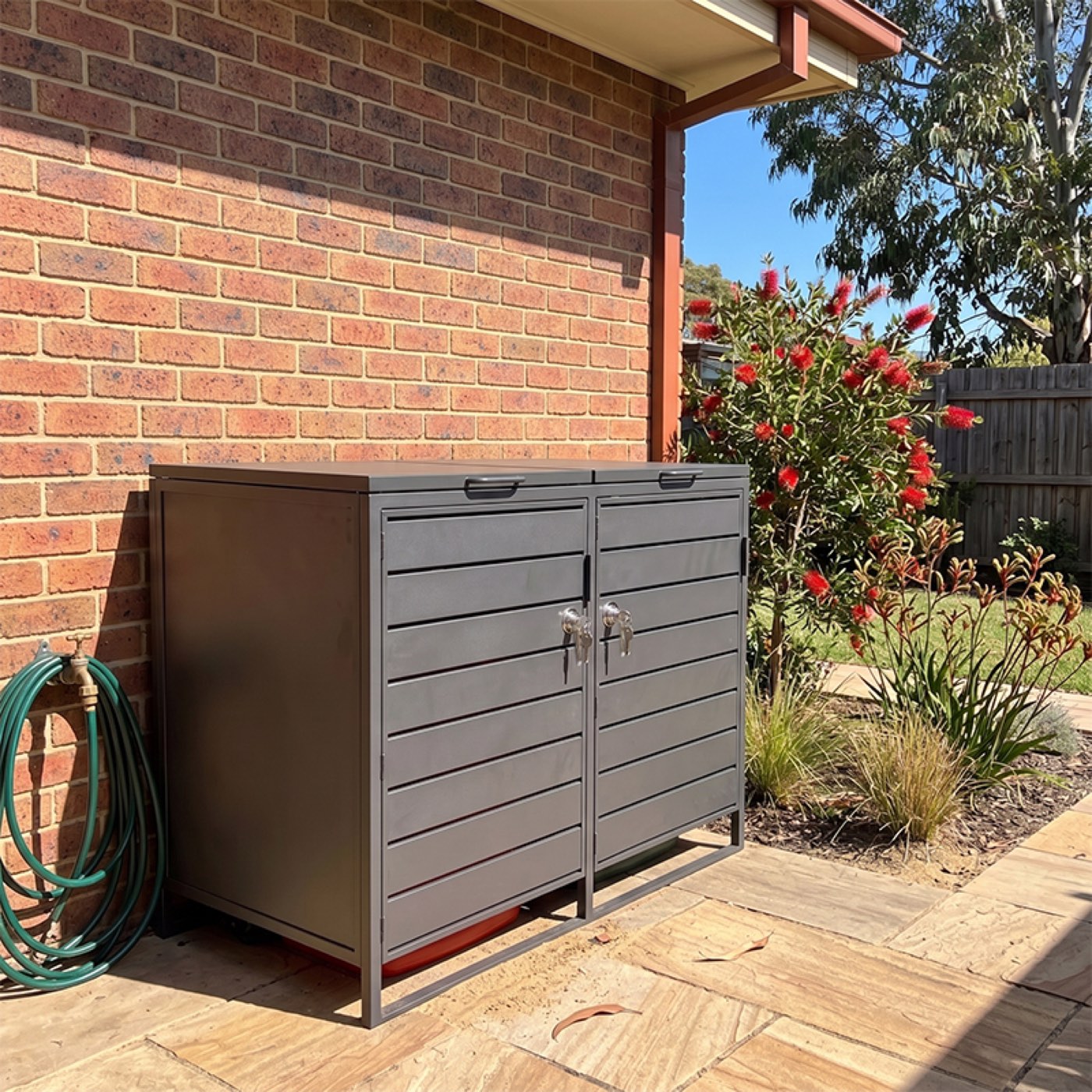

The enclosure in position outdoors in a residential setting.

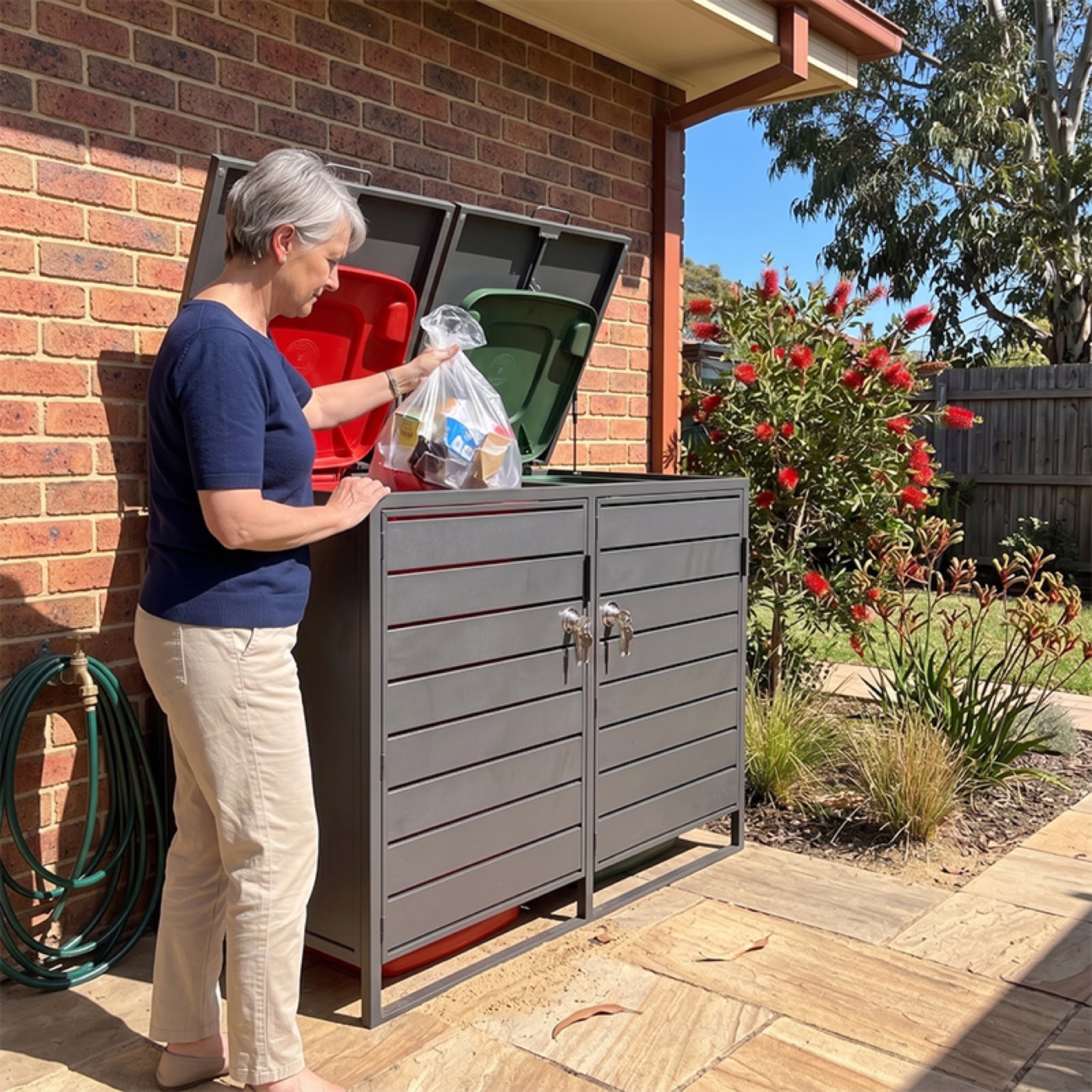

A second installed view of the enclosure outdoors.

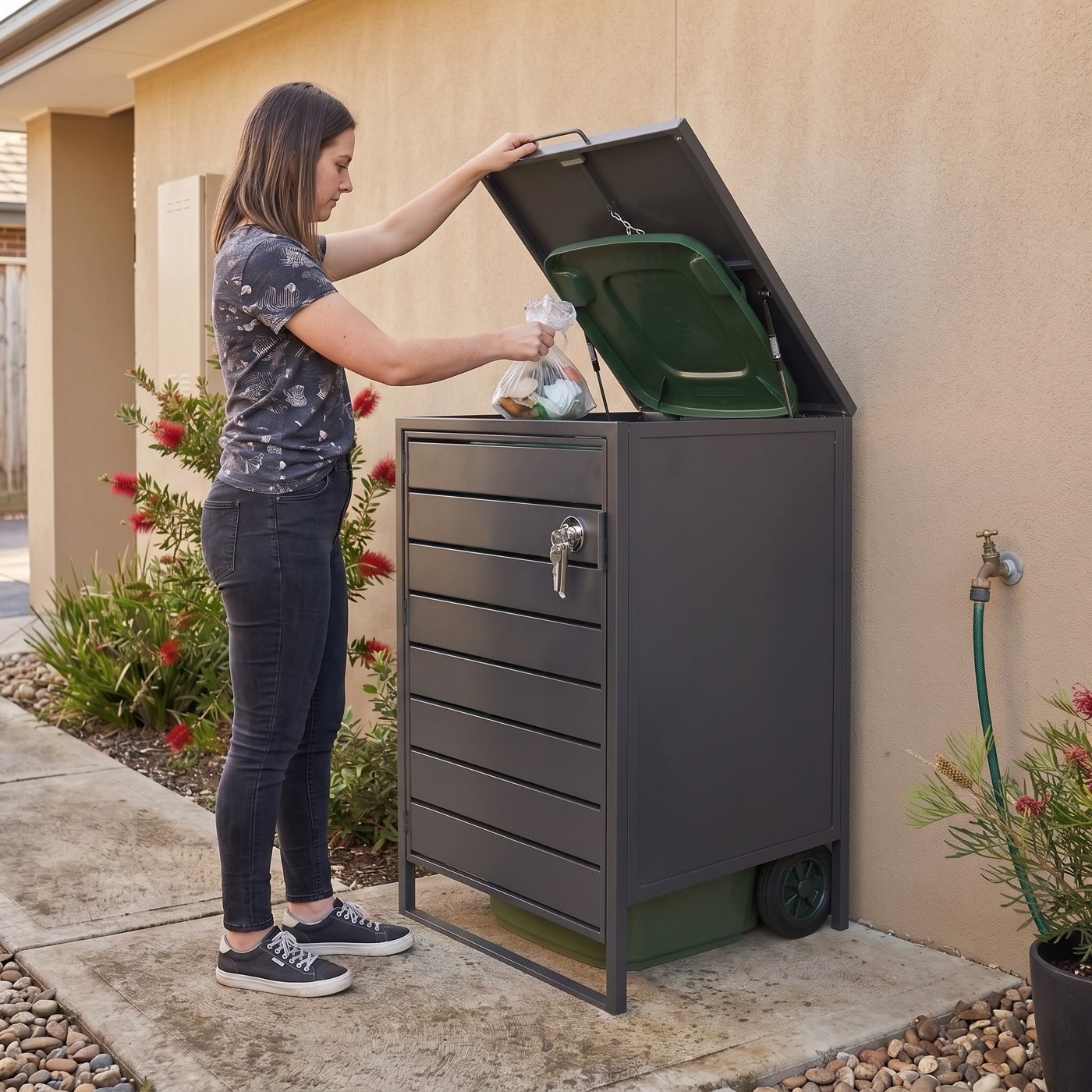

A person lifting the lid to put waste in, giving a sense of the enclosure's height against an adult.

1 / 12

$990.00 inc GST

Drive-away price including GST. $900.00 ex GST.

Ask about this productYou are talking to an automated assistant. It answers only from this product’s recorded specifications, and says so when it does not know.
Ask anything about the Double 240L Lockable Bin Enclosure — dimensions, what is included, or what happens at an appointment.
What are the external dimensions?How much room is there inside?How wide is the opening?How do the lids work?
Every answer gets its own address, so it can be sent to whoever else is deciding.

Will it fit?

Give the space you have. We check it against this product’s recorded dimensions — nothing is estimated.

Conceals two standard Australian wheelie bins of up to 240 L each, for homes, apartment blocks, schools, offices and commercial premises.

Built from powder-coated galvanised steel. The zinc coating underneath the powder coat continues to resist rust even where the surface is scratched or chipped, and the handles, hinges and fasteners are stainless steel, so the enclosure can be hosed out.

Each compartment has its own key lock and its own chain-and-clip linkage, which lifts the wheelie bin lid together with the enclosure lid so rubbish can go in without opening the front doors. Gas struts carry the weight of the lids.

Supplied flat-packed for DIY assembly. Wheelie bins are not included.

Specifications

Every figure is recorded, with the document it came from. Open a question to have the assistant explain what a group of numbers means for you.

External
External width1400 mm
External depth820 mm
External height1162 mm
What are the external dimensions?
Internal
Internal bay width640 mm
Internal bay depth820 mm
Internal bay height1162 mm
How much room is there inside?
Opening
Bin opening width610 mm
Bin opening height1075 mm
Door leaf width640 mm
Door leaf height1014 mm
Door aperture height1019 mm
Gap beside each door40 mm
Clearance below doors50 mm
How wide is the opening?
Lid
Number of lids2
Lid section width696 mm
Lid assistanceGas struts
Lid linkageChain and clip to the bin lid
How do the lids work?
Capacity
Bins accommodated2
Maximum bin size240 L
Number of compartments2
What will it hold?
Build
MaterialPowder-coated galvanised steel
HardwareStainless steel handles, hinges and fasteners
Weight44 kg
Handle height756 mm
What is it made of?
Operation
LockingIndependent key lock per compartment
Door accessWide-opening front doors
How does it open and lock?
Delivery
SuppliedFlat-packed for DIY assembly
Wheelie binsNot included
StockArriving early September 2026
FreightFlat rate to metro and major regional areas
How does it arrive, and what does delivery cost?

Figures above are from our product records. Final fit and suitability are confirmed at your appointment.
